Sinks

Description

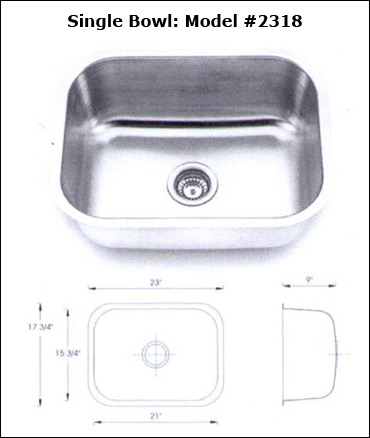

• Overall Size: 23" x 17¾", 9" Deep
• (585mm x 450mm, 230mm Deep)
• Bowl: 21" x 15¾"
• Thickness: 18 ga.
• Weight: 4.0 kgs

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-5340
• Rinsing Basket: RB-5340
• 114 S/S Strainer

Description

• Overall Size: 31½" x 18½", 10" Deep
• (800mm x 470mm, 250mm Deep)
• Bowl: 29½" x 16⅛"
• Thickness: 18 ga.
• Weight: 6.5 kgs

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• 3½" (114mm) drain opening

Finish

• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-7541 for big bowl
• 114 S/S Strainer

Description

• Overall Size: 32" x 20¾", 9"(L) and 7"(R)Deep
• (810mm x 525mm, 230mm(L) and 180mm(R) Deep)
• Left Bowl: 18¾" x 15¾"
• Right Bowl: 16½" x 13"
• Small bowl on the right
• Thickness: 18 ga.
• Weight: 6.8 kgs
• Metal: S/S 304 18-8

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-4740 for big bowl
• 114 S/S Strainer

Description

• Overall Size: 34¾" x 20¾", 9" Deep
• (880mm x 525mm, 230mm Deep)
• Bowl: 18¾" x 15¾"
• Both bowls are the same size
• Thickness: 16/18 ga.
• Weight: 7.5 kgs
• Metal: S/S 304 18-8

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-4740
• 114 S/S Strainer

Description

• Overall Size: 31½" x 20¾", 9"(L) and 7"(R) Deep
• (800mm x 525mm, 230mm(L) and 180mm(R) Deep)
• Bowl: 18¾" x 15¾"
• Small bowl on the right
• Thickness: 18 ga.
• Weight: 6.1 kgs
• Metal: S/S 304 18-8

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-4745 for big bowl
• 114 S/S Strainer

Description

• Overall Size: 46½" x 20¾", 9"(Big) and 7"(Small) Deep
• (1180mm x 525mm, 230mm(B) and 180mm(S) Deep)
• Big Bowl: 18¾" x 15¾"
• Small Bowl: 13" x 10¾"
• Small bowl in the middle
• Big Bowl Thickness: 18 ga.
• Small Bowl Thickness: 20 ga.
• Weight: 10 kgs
• Metal: S/S 304 18-8

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-4740 for big bowl
• 114 S/S Strainer

Description

• Outside Size: 18.5" x 15" x 8"
• (470mm x 381mm x 204mm)
• Inside Size: 17" x 13.5" x 6"
• (432mm x 343mm x 153mm
• Color: White and Ivory
• Under Counter Mounting

Description

• Outside Size: 18.5" x 15" x 8"
• (470mm x 381mm x 204mm)
• Inside Size: 17" x 13.5" x 6"
• (432mm x 343mm x 153mm)
• Color: White and Ivory
• Under Counter Mounting

Description

• Overall Size: 15" x 12¾", 7" Deep
• (380mm x 320mm, 180mm Deep)
• Bowl: 13" x 10¾"
• Thickness: 20 ga.
• Weight: 1.7 kgs

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-3327
• 114 S/S Strainer

Description

• Overall Size: 19" x 15¼", 7" Deep
• (480mm x 385mm, 180mm Deep)
• Thickness: 18 ga.

Features

• T-304 Stainless Steel
• StoneGuard Undercoated over rubber pad
• Offset drain, 3½" (114mm) drain opening

Finish

• All Polish
• All Satin
• Deck Polish & Bowl Satin

Installation

• Undercounter installation
• Supplied with cutout template & fasteners

Optional Accessories

• Bottom Grid: BG-4233
• 114 S/S Strainer
